AL-KO Kober

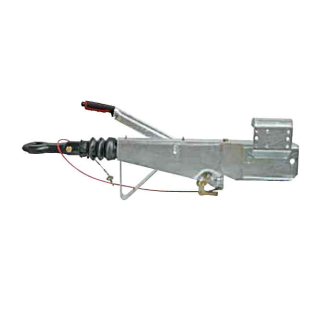

overrun device with DIN eye 161 S for wheel brake: 1637/2051 - square 100 mm
Complete AL-KO Kober overrun brake with DIN eye 161 S up to 1600 kg.
Properties:
Weight range: GA 950-1600 kg
Support load max. 100 kg
Installation dimensions (hole pattern): Rear (A) 166-217 mm - Front (B) 120 mm - Distance (C) 166 mm - Ø13 mm
Coordinated with AL-KO wheel brake type 1637/2051
Brake rod connection: M10
The reversing lever is on this one
Overrun device can be repositioned.
The AL-KO Kober 161 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
EG Pr Nr 361-284-83, 00-0267
| Item information |
Value |
| Shipping weight: |
19,00 kg
|
