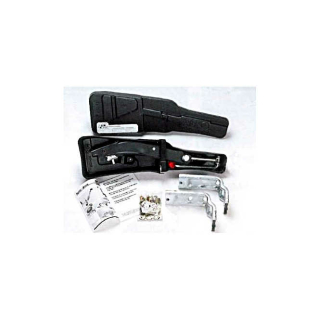

AL-KO Kober car jack with box for caravans with a maximum weight of 1600 kg
Load capacity 800 kg
Starting
height A 85 mm
Lifting height B 290 mm
End
height C 375 mm
Your plus
On request as standard equipment or can be retrofitted to caravans with AL-KO chassis from 1980.
Substructure
The AL-KO jack can also Can be used to support the caravan (leave the towing vehicle coupled).
Plug-in system
No slipping thanks to the special plug-in system (leave the towing vehicle coupled). Special insert pockets reinforce the frame and are also supported on the
caravan floor.
Operation
Leave the towing vehicle coupled - insert the jack into the insert pocket, align it, crank it up.
Attachment
From 1991 onwards, most caravans with an AL-KO chassis were already equipped with the corresponding mounting holes. For all other vehicles built
after 1980, the holes may be drilled yourself in accordance with the operating instructions.
| Item information |
Value |
| Shipping weight: |
3,30 kg
|
