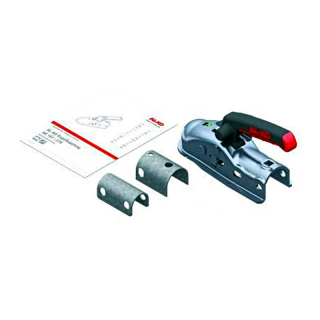

ALKO AK 161 drawbar Ø 35/45/50 mm
ALKO ball coupling, universal design drawbar Ø 35/45/50 mm for trailers up to 1600 kg permissible axle load up to 120 kg permissible support load at the coupling point
EC approval E1 55R-01 0159
with soft dock
for round draw tube diameter with spacers 35/45/50 mm
Bores: 12.5 mm
Hole spacing: horizontal 47-54 mm, cross-screwed 40 mm
Material: steel
with lock mount U- lock
With safety indicator coupling state
Tightening torque: 86 Nm
replaced AK10 / 2 version A and AK13 / 1 version H and AK 160 version A 35 mm (267311)
PDF
| Item information |
Value |
| Shipping weight: |
1,60 kg
|
