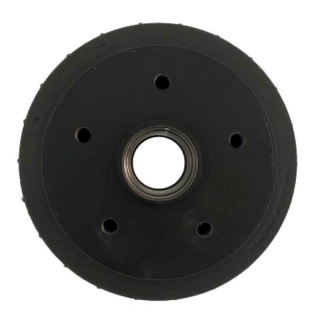

AL-KO Kober brake drum: 200 x 50, wheel connection: 112 x 5 holes, axis B 850-10, 1000 kg & axis B 1200-5, 1300 kg
wheel brakes of type 2051 Aa, A, Ab
Cast number: 605121 with axle bearing, 34/64 x 37 or with cast number: 1366103
The following spare parts are
suitable for this:
Replacement bearings, size 34/64 x 37 mm
grease cap Ø 55 mm
flange nut, self-locking, 280 Nm
locking ring, Ø 68 mm
locking ring, Ø 76 mm
brake shoe set 200 x 50 with complete with feathers
PDF
| Item information |
Value |
| Shipping weight: |
7,00 kg
|
Product safety information
Manufacturer information:
AL-KO Kober
Ichenhauser Str. 14
Kötz, , 89359
info@al-ko.com
https://al-ko.com/
DE
