AL-KO Kober brake drum: 200 x 50, wheel connection: 112 x 5 holes, axle B 1200-5, 1300 kg, reinforced bearings
wheel brakes of type 2051 Aa, A, Ab

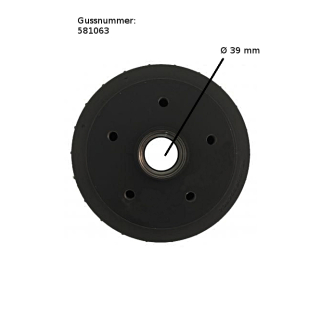

Cast number: 581063, replaces No. 583928 with axle bearing, 39/72 x 37 mm
Large compact bearing inner diameter Ø 39 mm, outer diameter Ø 72 mm
Cast number on the brake drum is: 581063 Brake
drum inner diameter Ø: 200 mm, width of the brake shoes: 50 mm, wheel connection: 5 x 112 thread: M12 x 1.5
Dimensions of the wheel bearing: outside 72 mm / inside 39 mm / depth 37 mm
The following spare parts fit
Art.-No.: 1224803 wheel bearing, the wheel bearing set consists of:
1 x compact wheel bearing Ø 72/39/37 mm
1 x circlip
1 x
Flange nut, self-locking, 280 Nm
Item No.: 581 197 Grease cap Ø 55 mm
Item No.: 1213889 Brake shoe set complete with springs
PDF
| Item information |
Value |
| Shipping weight: |
8,50 kg
|
