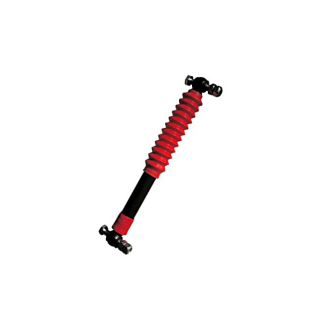

KNOTT pneumatic axle shock absorber, red for single
axles up to 900 kg
and for tandem axles up to 1600 kg with screw material
Shock absorbers for a speed upgrade of 100 km / h.
Length retracted: 250 mm
length max. extended: 371mm
working area: min. 260 mm, max. 360 mm
2 screw holes: M12, width of the eyes: 30 mm
damper tube diameter approx.: 40 mm
The installation length of the shock absorbers should be between 270 and 290 mm in the unloaded state.
including screw material
| Item information |
Value |
| Shipping weight: |
0,75 kg
|
Product safety information
Manufacturer information:
KNOTT
Obinger Straße 15
Eggstätt, Deutschland, 83125
info@knott.de
https://www.knott.de/
