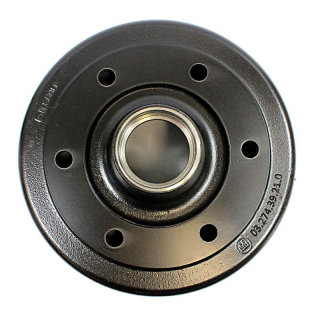

Brake drum ALKO 205 x 6
Cast number on the brake drum: 2185680001
Brake
drum inside diameter: 300 mm Width for brake shoes: 60 mm
Wheel connection: 6 x 205
thread: M12 x 1.5
wheel bearing: LM67048 / 67010 + LM503349 / 503310
bearing dimensions: bearing outside LM67048 / 67010 Ø inside: 31.750 mm Ø outside: 59.131 mm width / depth: 15.875 mm
Bearing inside LM503349 / 310 Ø inside: 46 mm Ø outside: 75 mm width / depth: 18 mm
Shaft sealing ring 75 mm x 55 mm x 8 mm matching seal Order No.: 700 779
matching grease cap Order No.: 218 568 00 07
Suitable brake shoe set Order No.: 1 220 33 0
PDF
| Item information |
Value |
| Shipping weight: |
10,40 kg
|
