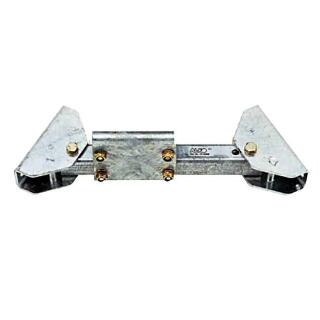

Jockey wheel traverses for traction connections V - 3,500 kg
AL-KO item number: 1 212 991
- If the support load is exceeded, no twisting of the bars, as was sometimes the case with External mounting of the support wheel
- The installation of the support wheel between the bars enables safe and easier maneuvering by hand
- The movable mounting brackets allow the cross bar to be adjusted to the respective bar position
- The delivery is pre-assembled, which means that assembly is quick and easy
- Three standard lengths allow a wide variety of assembly positions
Area of application for V-chassis
Attachment:
The traverse can be attached to AL-KO tension connections (attachment position see sketch). For this purpose, 2 holes 12.5 or 13 mm each are required in the neutral area of the bars (TÜV approval, see operating instructions).
Attention The support wheel traverse must lie against the upper edge of the train connection. The support wheel can be installed either in front of or after the traverse in the direction of travel.
Surface treatment:
Hot-dip galvanized, screws galvanized and additionally yellow chromated
Scope of delivery:
Traverse with pre-assembled mounting brackets and pre-assembled counter flange for clamps Ø 48 mm and Ø 60 mm or AL-KO flange support wheel.
| Item information |
Value |
| Shipping weight: |
4,90 kg
|
