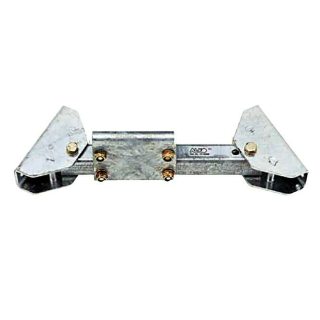

Jockey wheel traverses for traction connections V - 3,500 kg
- If the support load is exceeded, no twisting of the bars, as was previously the case with external mounting of the jockey wheel
- The installation of the jockey wheel between The bars enable safe and easier maneuvering by hand
- The movable mounting bracket adapts the crossbeam to the respective bar position
- The delivery is pre-assembled, which enables quick and easy assembly li>
- Three standard lengths allow a wide variety of mounting positions
Area of application for V-chassis
Attachment:
The traverse can be attached to AL-KO tension connections (see sketch for attachment position). For this purpose, 2 holes 12.5 or 13 mm each are required in the neutral area of the bars (TÜV approval, see operating instructions).
Attention The support wheel traverse must lie against the upper edge of the train connection. The jockey wheel can be installed either in front of or after the traverse in the direction of travel.
Surface treatment:
Hot-dip galvanized, screws galvanized and also yellow chromated
Scope of delivery:
Traverse with pre-assembled mounting brackets and pre-assembled counter flange for clamps Ø 48 mm and Ø 60 mm or AL-KO flange support wheel.
Product safety information
Manufacturer information:
AL-KO Kober
Ichenhauser Str. 14
Kötz, , 89359
info@al-ko.com
https://al-ko.com/
