Overrun device ALKO Kober 251 SA below installation, for wheel brake: 1637/2051 with flange plate

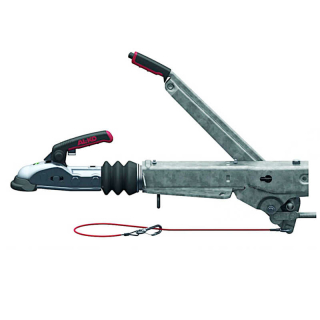

Complete overrun brake AL-KO Kober 251 SA for below installation up to 2700 kg.
Properties:
Weight range: GA 1500-2700 kg
Support load max. S 100 kg
EC test No.: 361-303-83, e1 00-0227
ETI-No.: 811025
Installation is from below on the V-drawbar
Installation dimensions (hole pattern): Rear (A) 166 -217 mm - front (B) 120 mm - distance (C) 166 mm - Ø13 mm
Brake linkage connection: M10
The AL-KO Kober 251 SA bottom mounting is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 249219
| Item information |
Value |
| Shipping weight: |
20,00 kg
|
