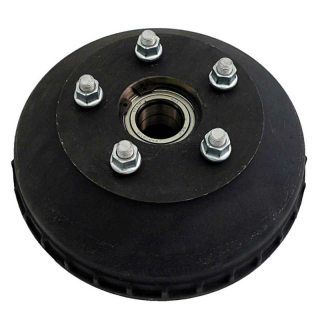

WAP brake drum W 235-RS, old 5 x 112 with bearing and circlip
The company WAP only supplies the brake drums with internal thread, the nuts with thread shown in the picture are missing Wheel bolts as accessories.
Brake drum inside diameter: 230 mm Width for brake shoes: 50 mm
Wheel connection: 5 x 112
Thread: M12 x 1.5
Dimensions of the wheel bearing: Outside 72 mm / inside 39 mm / depth 37 mm as wheel bearing set 415872
Parts
list wheel bearing set:
1 x wheel bearing compact Ø 72/39/37 mm
1 x locking ring
1 x flange nut
Matching grease cap, order No.: 416268
Matching brake shoes, order No.: 416228
| Item information |
Value |
| Shipping weight: |
10,50 kg
|
Product safety information
Manufacturer information:
WAP
, ,
