Winterhoff WW 8 A up to 800 kg draw tube 50 mm round

Winterhoff WW 8 A up to 800 kg draw tube 50 mm round

SKU: 1018
Category: up to 800 kg
Manufacturers:

WW 8 version A

NZ$ 73,47

excl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

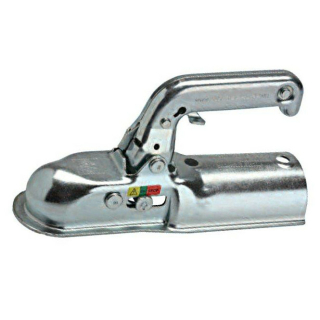

Winterhoff WW 8 A ball coupling up to 800 kg draw tube 50 mm round

The Winterhoff ball couplings of the new generation with vertical screw connection, two screws from top to bottom.

Draw tube 50 mm round, Screws 10-12 mm, drilling distance 90 mm
They are of high quality workmanship and practical details; like lateral wear and safety indicator and large handle.
Wear: coupling / ball
Opening of the coupling by tilting the handle forward.

Installation is easy with all Winterhoff couplings The old coupling is removed with two screws and the new coupling screwed on.
Up to max. 800 kg trailer load, permissible support load up to 75 kg.
The coupling closes automatically by pushing downwards or by means of a support load.
