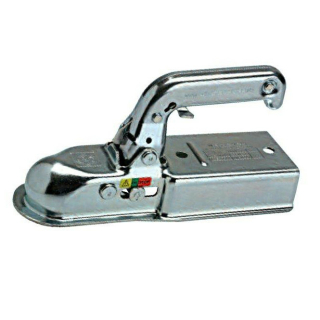

Winterhoff WW 8 H up to 800 kg draw tube 70 mm square
The Winterhoff ball couplings of the new generation with vertical screw connection, two screws from top to bottom.
Draw tube 70 mm square, Screws 10-12 mm, drilling distance 90 mm.
They have a high quality workmanship and practical details; like lateral wear and safety indicator and large handle.
Wear: coupling / ball
Opening of the coupling by tilting the handle forward.
Installation is easy with all Winterhoff couplings The old coupling is removed with two screws and the new coupling screwed on.
Up to max. 800 kg trailer load, permissible support load up to 75 kg.
The coupling closes automatically by pushing downwards or by means of a support load.
PDF
| Item information |
Value |
| Shipping weight: |
1,35 kg
|
