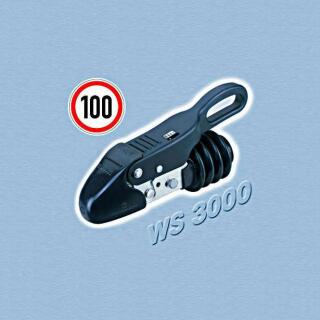

Safety coupling Winterhoff WS 3000 bore 14/12 drawbar Ø 50
Reference numbers: 1860853
It was the only one in the test to achieve the critical speed of 130 km / h in France without lurching Trailer, had the best damping
and the highest damping torque for rolling and pitching movements on the test bench.
It dampens rolling and pitching movements up to 330 Nm, has the easy single-lever operation and is approved for trailer loads of up to 3000 kg.
(For drawbar Ø 50 mm).
A: open, suspended coupling
B: secured coupling with deactivated stabilization
C: secured clutch with active stabilization
- Reduces rolling and nodding
- One-lever system for all functions
- Stabilizing, destabilizing
- Coupling, uncoupling
- Securing, unlocking
D: Large clearance to the rear of the vehicle. Problem-free coupling even for vehicles with a rear spare wheel and a small distance between the bumper
and the ball.
E: Maxi-Soft-Buffer protects legs and bumpers
H: Extremely slim design for unrestricted ball neck -Free space
- Low dead weight with 3000 kg trailer load
- Support load up to 150 kg
- EC approval No. 00-0065 e1
- No entry required
- Can be retrofitted for all trailers with a 14/14 hole. Drawbar Ø 50
WS 3000, the safety coupling with directional stability ization and one-lever system.
| Item information |
Value |
| Shipping weight: |
5,40 kg
|
