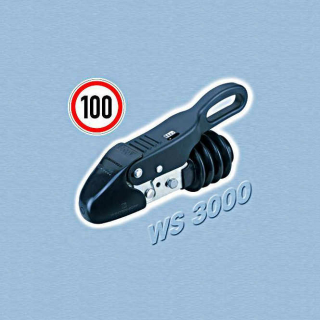

Winterhoff WS 3000 safety coupling
It was the only one in the test to achieve the critical speed of 130 km / h in France without the trailer rolling, had the best damping
and the highest damping torque for rolling and pitching movements on the Test stand.
It dampens rolling and pitching movements up to 330 Nm, has a very easy single-lever operation and is approved for towing loads of up to 3000 kg.
(For drawbar Ø 50 mm).
A: open, suspended coupling
B: secured coupling with deactivated stabilization
C: secured clutch with active stabilization
- Reduces rolling and nodding
- One-lever system for all functions
- Stabilizing, destabilizing
- Coupling, uncoupling
- Securing, unlocking
D: Large clearance to the rear of the vehicle. Problem-free coupling even for vehicles with a rear spare wheel and a small distance between the bumper
and the ball.
E: Maxi-Soft-Buffer protects legs and bumpers
H: Extremely slim design for unrestricted ball neck -Free space
- Low dead weight with 3000 kg trailer load
- Support load up to 150 kg
- EC approval No. 00-0065 e1
- No entry required
- Can be retrofitted for all trailers with a drawbar connection of Ø 50 mm
WS 3000, the safety coupling with tie rod ilization and one-lever system.
| Item information |
Value |
| Shipping weight: |
5,40 kg
|
Product safety information
Manufacturer information:
ALOIS KOBER GMBH
Ichenhauser Str. 14
Kötz, , 89359
info@alko-tech.com
https://www.winterhoff.de/
