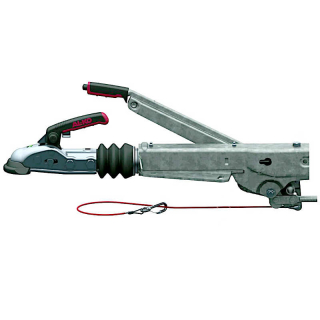

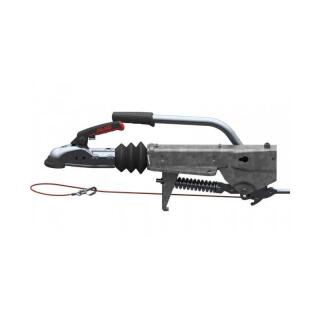

Overrun device AL-KO Kober 251 SA 1500kg - 2700kg above installation for wheel brake: 1637/2051 with flange plate
Complete overrun brake AL-KO Kober 251 S above installation up to 2700 kg.
Properties:
Weight range: GA 1500-2700 kg
Support load max. S 100 kg
Installation
dimensions (hole pattern): Back (A) 166-217 mm - Front (B ) 120 mm - distance (C) 166 mm - Ø13 mm
Brake rod connection: M10
The assembly takes place from above on the V-drawbar
The AL- KO Kober 251 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 247 581
| Item information |
Value |
| Shipping weight: |
18,00 kg
|
