Overrun device AL-KO 161 SA 950 kg - 1600 kg above installation 2361

Overrun device AL-KO 161 SA 950 kg - 1600 kg above installation 2361

SKU: 1251913
Category: Overrun devices
Manufacturers:

161 SA 950kg - 1600kg, wheel brake: 2361

NZ$ 770,63

excl. 0% VAT , plus

Delivery time: 2 - 5 weeks Other countries

Description
Question about item

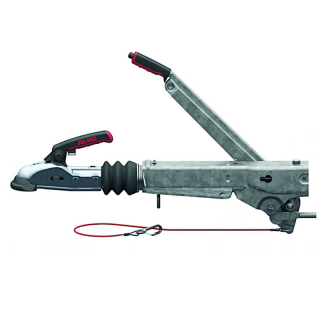

ALKO Kober 161 S overrun device for wheel brake: 2361 with flange plate

Complete AL-KO Kober 161 S overrun brake for top installation up to 1600 kg.

Features: b>
Weight range: GA 950-1600 kg
Support load max. 100 kg
Installation dimensions (hole pattern): rear (A) 166-217 mm - front (B) 120 mm - distance (C ) 166 mm - Ø13 mm
Coordinated with AL-KO wheel brake type 2361

Brake rod connection: M10

The assembly takes place from above on the V-drawbar

The AL-KO Kober 161 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.

Replacement for 249215

Item information	Value
Shipping weight:	12,50 kg

Product safety information

Manufacturer information:

AL-KO Kober
Ichenhauser Str. 14
Kötz, , 89359
info@al-ko.com
https://al-ko.com/
