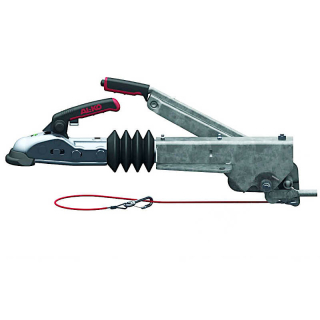

Overrun device ALKO Kober 60S / 2-B for wheel brakes: 1636G / 1637 with flange plate
Complete overrun brake AL-KO Kober 60S / 2-B for above installation up to 750 kg.
Properties:
Weight range: GA 450-750 kg
Installation
dimensions (hole pattern): rear (A) 150-170 mm - front (B) 100 mm - distance (C) 130 mm - Ø13 mm
Coordinated with AL-KO wheel brake type 1636G and 1637
Brake rod connection: M10
The assembly is done from above on the V-drawbar
The AL-KO Kober 60 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 249367
| Item information |
Value |
| Shipping weight: |
12,50 kg
|
