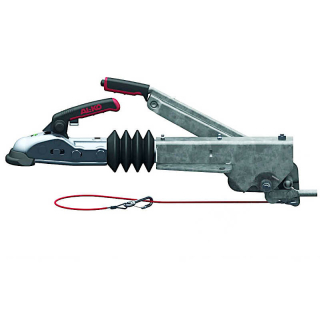

Overrun device ALKO Kober 90S / 3-B 700kg for wheel brake: 1636G / 1637/2051 with flange plate
Complete overrun brake AL-KO Kober 90S / 3-B for above installation up to 1000 kg.
Properties:
Weight range: GA 700 - 1000 kg
Support load max. 100 kg
Installation
dimensions (hole pattern): Rear (A) 150-170 mm - Front (B) 100 mm - distance (C) 130 mm - Ø13 mm
Coordinated with AL-KO wheel brake type 1636G / 1637 and 2051
Brake rod connection: M10
ETI-No.: 811062, 811064
The assembly is done from above on the V-drawbar
The AL-KO Kober 90 S is suitable for everyone Wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 249212
| Item information |
Value |
| Shipping weight: |
12,50 kg
|
